Product Parameters
| System model | JPTS-120 | JPTS-150 | JPTS-200 |
| Volume | 120L | 150L | 200L |
| Dimensions of tank | φ480-1285 | φ550-1135 | φ550-1445 |
| In/0utlets | G 1/2” | ||
| Outside tank material | Powder coated & UV resistant steel | ||
| Inside tank material | Enamel liner | ||
| Collector model | FJ200P | FJ200P | FJ270P |
| Flat plate collector quantity | 1 | 1 | 1 |
| Aperture area(m²) | 1.85 | 1.85 | 2.5 |
| Weight(kg) | 93 | 106 | 135 |
| Water tank packaging size Length*width*height(mm) | 1340x530x530 | 1170x600x600 | 1485x600x600 |
| Heat collector packaging size Length*width*height(mm) | 2030x1120x90 | 2030x1120x90 | 2030x1470x90 |
| Bracket packaging size Length*width*height(mm) | 2620x200x105 | 2620x200x105 | 2620x200x105 |

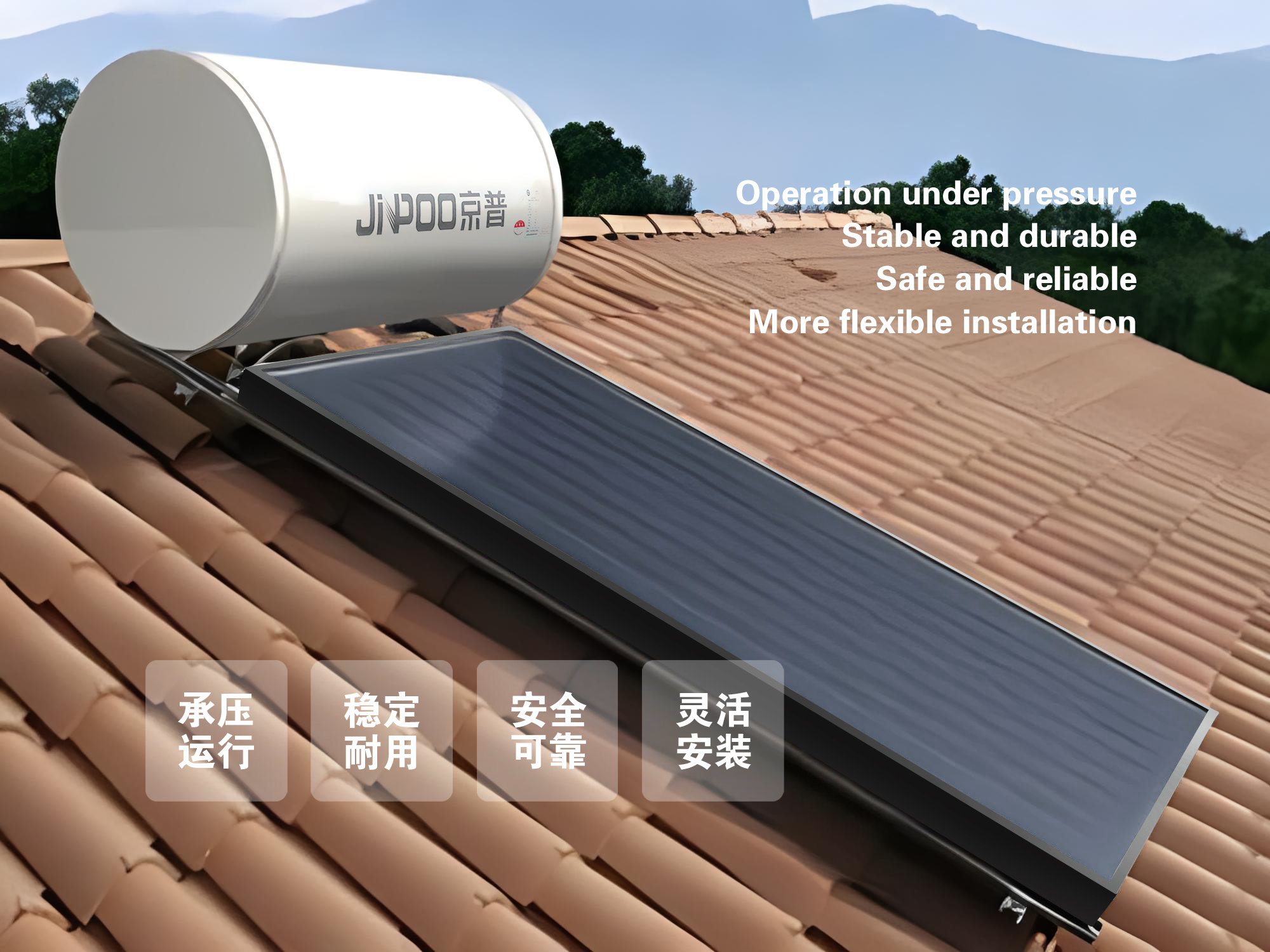

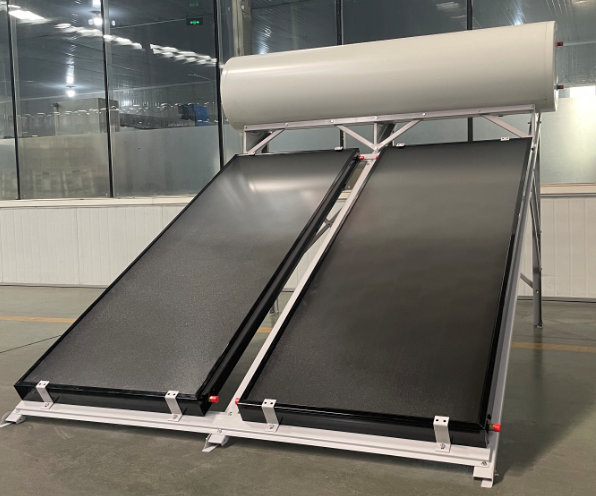

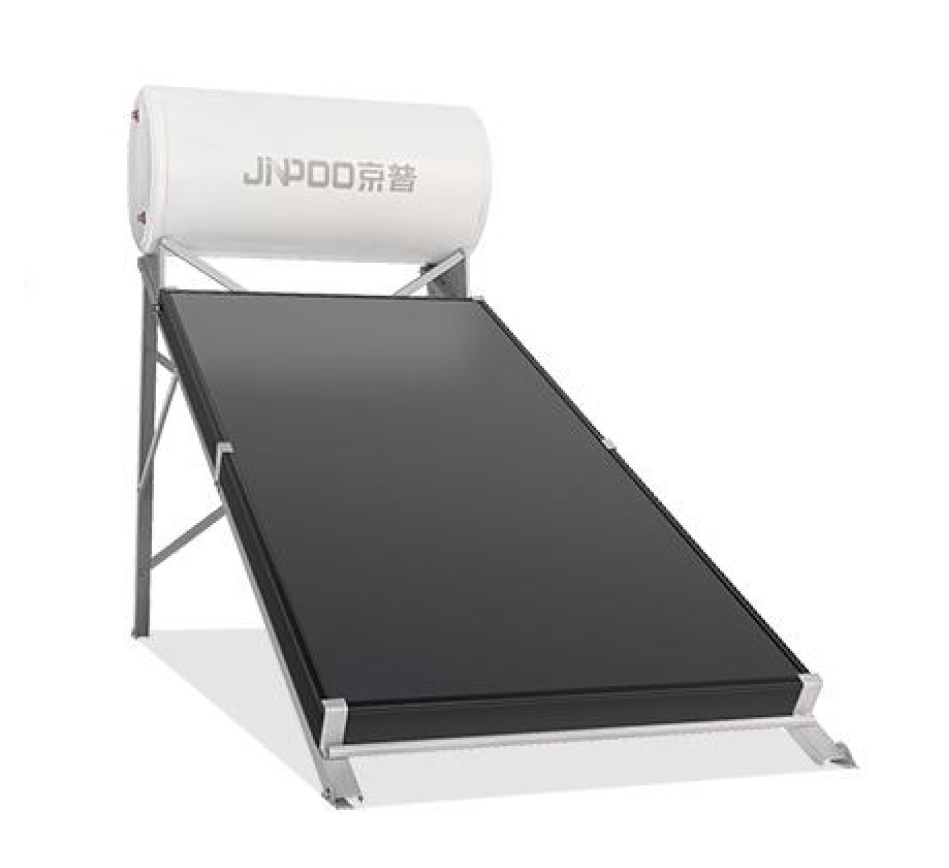

Flat Plate Solar Water Heater (lntegral Pressurized solar Water Heater)

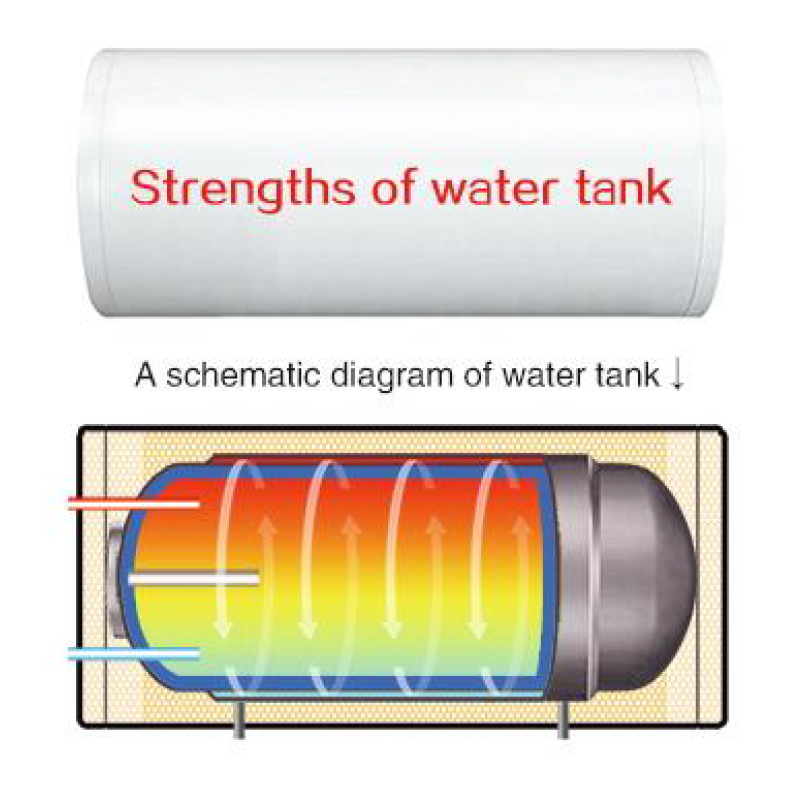

1 .Inner tank is made of enamel special high-tensile thickening steel plate. Enamelcoating is made of imported enamel powder through high-temperature sintering at860℃, which can help to solve the shortage of welding joints’irresistance to cor-rosion in inner tank.
2.The jacketed water tank allows independent circulations of heat exchangemedium and domestic water. Uniform heating helps to avoid the buildup of scaleCompared to traditional solar water heaters, flat plate solar water heaters can pro-vide purer water and more stable water supply.3.By introducing Panasonic welding equipment and adopting butt welding process.the inner tank welding is more secure, and the inner wall is smoother, avoiding thedefects of enameling missing, bubbles, and pinholes in welding joints.4.Polyurethane insulation layer is fommed through high-pressure constant-temperature foaming and one-time mechanical curing molding, which can help toachieve higher closed porosity, effectively reduce heat loss caused by air conve-ction within insulation layer, and enhance its thermal insulation performance.

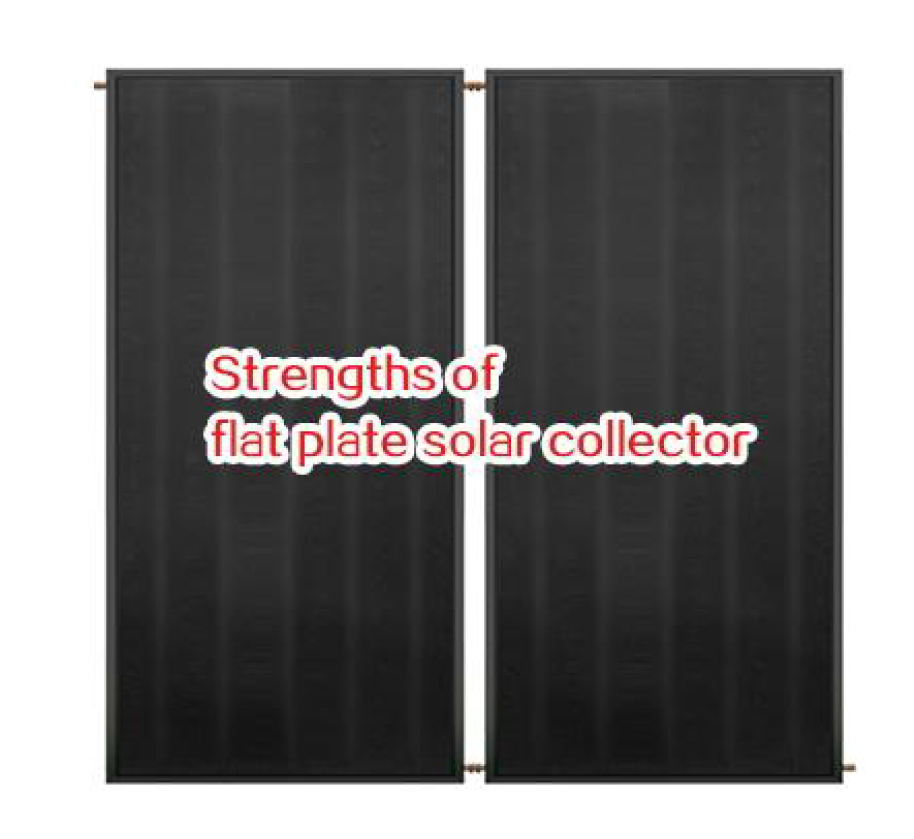

1.Flat plate collectors use black heat-absorbing coating, and have higherheat absorption efficiency compared to vacuum tube collectors. In thesame conditions, flat plate collectors can supply more hot water.2.lts full copper flow channels and advanced laser welding technologyhelp to achieve better bonding, higher thermal conductivity, and betterpressure-bearing capacity. Other components are mostly made of metalmaterials. There are almost no easily-damaged parts in the system, re-sulting in lower maintenance costs and longer service life..3.In cold regions,use specialized anti-freeze liquid as heat transfermedium to ensure its normal operation in sub-zero winter conditions.4.The cover plate is made of ultra-clear low-iron textured tempered glass,which has a strength 4-5 times that of ordinary glass, making it highly re-sistant to breaking and eliminating the risk of tube explosion associatedwith vacuum tube collectors.
